Submersible Pump

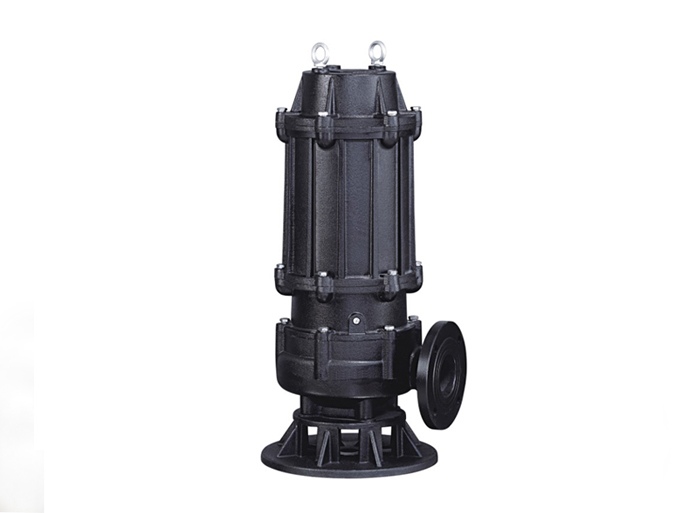

Submersible pump QW/WQ series
- Flow: 10 - 4,000 m3/h
- Delivery Head: 5 - 40m
- Outlet Dia.: 25 - 500mm
- Liquid Temp.: 0℃-80℃
- Product description: Submersible pump, Drainage Pump, irrigation pump, dewatering pump, sewage pump, mining pump
QW/WQ series submersible pump, it is widely used in the raw water in-taking, irrigation, drainage applications, and also widely used in the civil water supply, industrial water delivery, sewage discharge, construction site, mining, etc. It is easy using, simple installation and easy movable.
Main Performance Data
Flow: 10 - 4,000 m3/h
Delivery Head: 5-40m
Outlet Dia.: 25-500mm
Working Pressure: ≤ 1.5Mpa
Solid Particle: ≤ 80mg/L
Liquid Temp.: 0℃-80℃
Model Instruction
E.G:100QW100-15-7.5
100: Outlet diameter
QW: Submersible pump
100: Flow capacity
15: Delivery head
7.5: Motor power
Applications
Main Parts Configuration
The pump could be applied to transfer different kinds of liquid by customized wet parts, here followed our recommendation of main configuration:
E.G:100QW100-15-7.5
100: Outlet diameter
QW: Submersible pump
100: Flow capacity
15: Delivery head
7.5: Motor power
Applications
Industrial water supply and discharge,
Civil water supply & treatment
Irrigation & Drainage,flood disposal,
Oil, gas & petrol liquid processing,
Hot water & raw water transferring,
Chemical & Sea water transferring,
Power station water circulation,
Factory & residential fire fighting,
Mining water supply & drainage,
The pump could be applied to transfer different kinds of liquid by customized wet parts, here followed our recommendation of main configuration:
| Parts Name | For Clean Water | For Sewage | For Corrosive Liquid |
| Pump Case | Cast Iron HT250 | Ductile Iron/Cast Steel | S.S304 |
| Impeller | Cast Iron HT250 | Ductile Iron/Cast Steel | S.S304 |
| Shaft | Carbon Steel 45# | S.S420(2Cr13) | S.S304 |
| Shaft Sleeve | Carbon Steel 45# | S.S304 | S.S304 |
| Bearing | China Make/NSK/SKF | China Make/NSK/SKF | China Make/NSK/SKF |
| Seals | Mechanical Seals | Mechanical Seals | Mechanical Seals |
