Vertical Pump

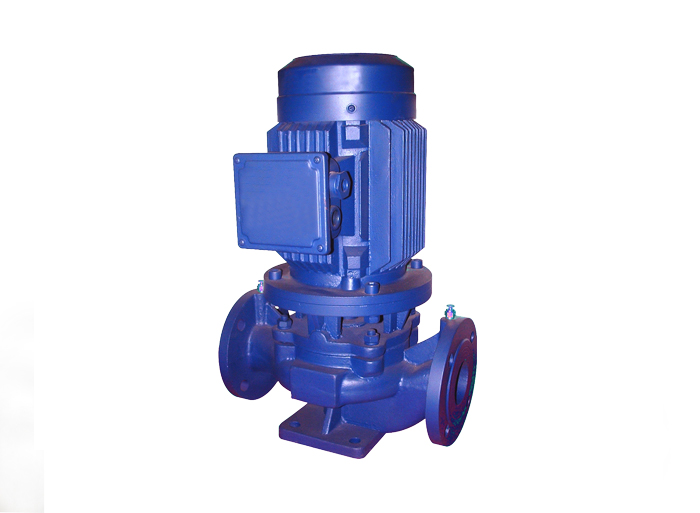

Vertical inline pump ISG series

Flow: 13- 520 m3/h
Delivery Head: 2.5 - 150m
Outlet Dia.: 50 - 200mm
Liquid Temp.: 0℃-120℃
Product description: vertical inline pump, boosting pump, circulation pump, vertical centrifugal pump
INQUIRY

ISG, IRG, IHG, IYG single stage single suction vertical inline centrifugal pumps are designed according to different working conditions. The excellent hydraulic model makes the pump easy intallation & maintenance, the compact designed pump save more space in the pump house.

Main Performance Data
Flow: 13 - 520 m3/h

Delivery Head: 2.5-155m
Outlet Dia.: DN50-DN200mm

Working Pressure (Max): 2.5Mpa
Liquid Temperature: 0 - 120℃ (by different material of wet parts)

Model Instruction
E.G: ISG/IRG/IHG/IYG 80-160A(B,C...)
ISG: Pump used for ambient clean water;
IRG: Pump used for hot water;
IHG: Pump used for chemical liquid;
IYG: Pump used for oil liquid;
80: Inlet diameter
160: Rate Impeller diameter
A(B,C...): Different impeller size.

Applications
Industrial water supply & discharge,
Oil, gas & petrol liquid processing,
Hot water & raw water transferring,
Chemical & sea water transferring,
Factory & residential fire fighting,
Civil water sypply and boosting.

Wet Parts Configuration
The pump could be applied to transfer different kinds of liquid by customized wet parts, here followed our recommendation of main configuration:

Parts Name	ISG	IRG	IHG	IYG
Pump Body	Cast Iron	Cast Steel	S.S304	Cast Iron
Pump Case	Cast Iron	Cast Steel	S.S304	Cast Iron
Shaft	Carbon Steel	S.S420	S.S304	S.S420
Shaft Sleeve	Carbon Steel	S.S420	S.S304	S.S420
Impeller	Cast Iron	Cast Steel	S.S304	Cast Iron
Wearing Ring	Cast Iron	Cast Steel	S.S304	Cast Iron
Bearing	China Make /NSK/SKF
Seals	Mechanical Seals
