End Suction Pump

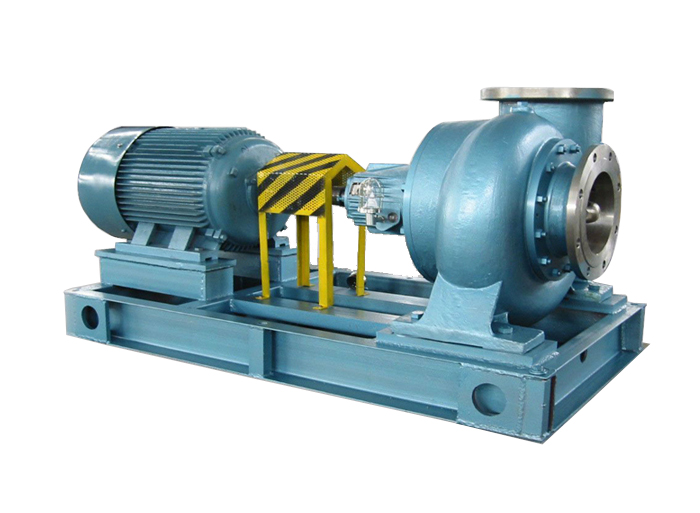

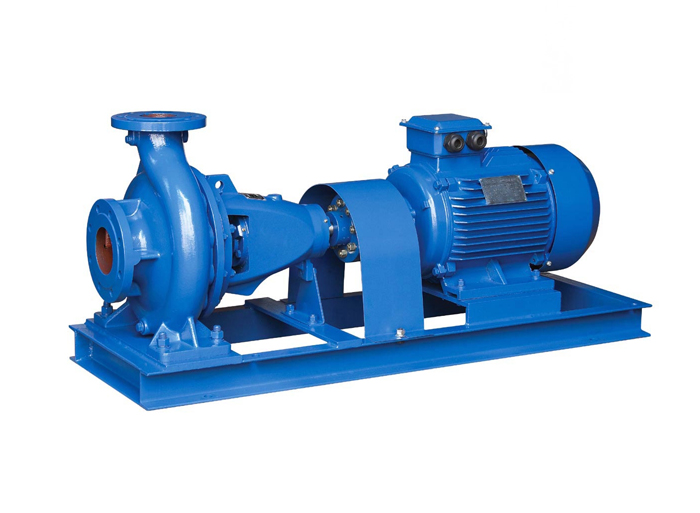

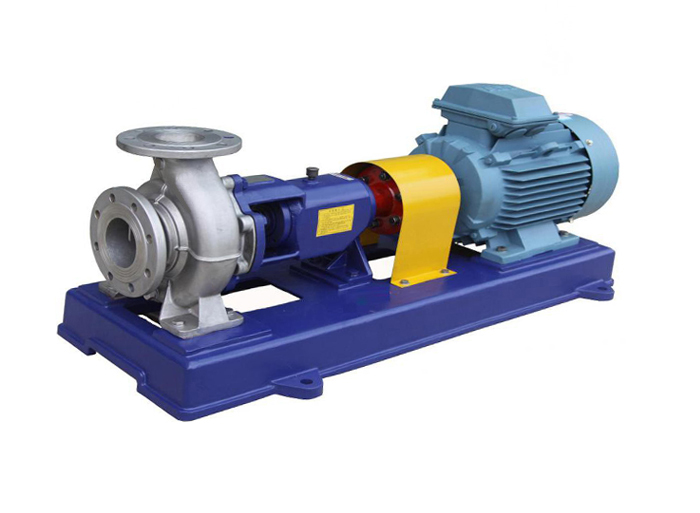

End suction pump IS series

Flow: 6 - 480 m3/h
Delivery Head: 5 - 125m
Outlet Dia.: 32 - 350mm
Liquid Temp.: 0℃-80℃
Product description: End suction pump, back pull out pump, over hang pump, circulation pump, sea water pump, stainless steel pump
INQUIRY

The IS series single stage end suction centrifugal pump is could be used to transfer clean liquid, sewage water, drink and wine, chemical liquid, hot liquid by selecting different flow passage parts. The pump is constructed with single impeller, horizontal installed, radial split volute casing with foot support and single entry impeller, end suction, vertical discharge.

Main Performance Data

Flow: 6 - 480 m3/h

Delivery Head: 5 - 125m

Outlet Dia.: 32 - 350mm

Working Pressure: ≤ 1.5Mpa

Solid Particle: ≤ 80mg/L

Liquid Temp.: 0℃ - 80℃

Model Instruction
E.G.: IS/IR/IY100-80-160A
IS: Single stage end suction pump (for clean water)
IR: Single stage end suction pump (for hot water)
IY: Single stage end suction pump (for oil liquid)
100: Inlet diameter is 100mm
80: Outlet diameter is 80mm
160: Rate impeller diameter is 160mm
A(B,C....): Impeller code

Applications

Industrial water supply and discharge,

Food, wine, drink, drug industry,

Clean & Hot water transferring,

Chemical liquid transferring,
Sea water desalination & transferring,

Factory & residential drink water supply,

Fibre processing industry, Paper & pulp industry

Sugar industry, Heading & Air conditioning,
Enviromental protection engineering.

Main Parts Configuration
The pump could be applied to transfer different kinds of liquid by customized wet parts, here followed our recommendation of main configuration:

Parts Name	Clean Water	Sewage Water	Hot Water	Oil Liquid
Pump Body	Cast Iron	Ductile Iron	Cast Steel/S.S304	S.S304
Shaft	Carbon Steel	S.S420	S.S420/S.S304	S.S304
Shaft Sleeve	Carbon Steel	S.S420	S.S420/S.S304	S.S304
Impeller	Cast Iron	Ductile Iron	Cast Steel/S.S304	S.S304
Wearing Ring	Cast Iron	Ductile Iron	Cast Steel/S.S304	S.S304
Bearing	China Make/NSK/SKF
Seals	PTFE Packing Seals / Mechanical Seals
