HW series Axial Flow Drainage Pump

Flow: 180 - 7,200 m3/h
Delivery Head: 4-18m
Outlet Dia.: 180-800mm
Liquid Temp.: 5℃-50℃
Product description: Drainage pump, Irrigation pump, Emergency pump, Dewatering pump - M&W ENTERPRISE
INQUIRY

HW series single stage axial flow pump is specially designed for transferring raw water in big volume, it is widely used in emergency water in-taking and discharge, like flood drainage, irrigation and similar circumstance.

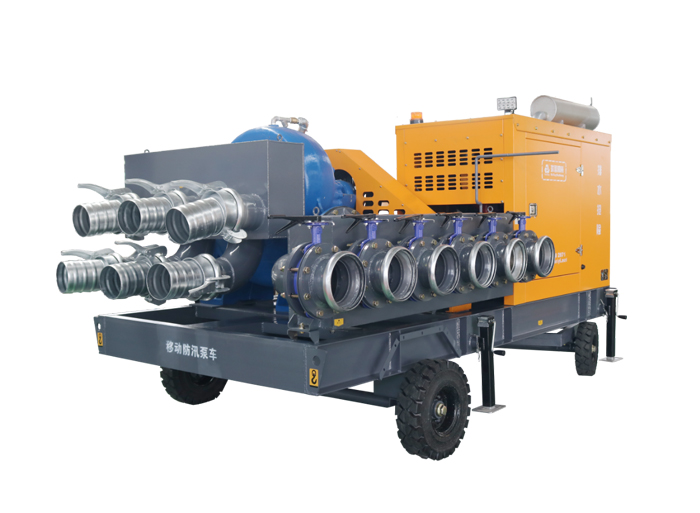

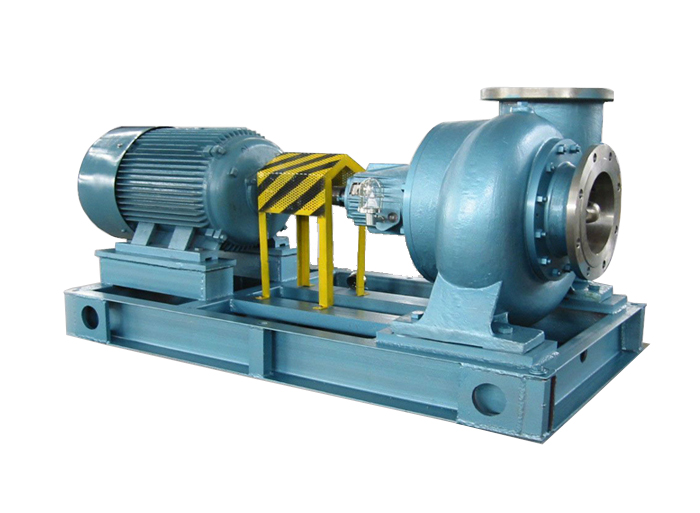

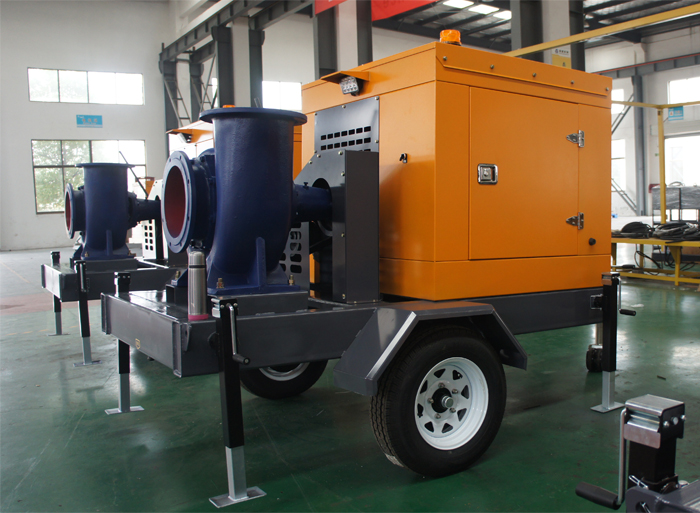

The pump could be driven by electric motor in a constructed pump station near the water side, and also could be driven by diesel engine mounted on a mobile pulley truck， which makes the pump could be applied to wild field where needed.

Main Performance Data

Flow: 180 - 7,200 m3/h

Delivery Head: 4 - 18m

Outlet Dia.: 150 - 800mm

Working Pressure: ≤ 0.25Mpa

Solid Particle: ≤ 80mg/L

Liquid Temp.: 5℃-50℃

Model Instruction
E.G.: 500HW-6
500: Inlet / Outlet diameter is 100mm
HW: Horizontal Water Pump for Drainage & Irrigation
6: Delivery Head is 6m
Applications

Irrigation, Drainage,
Emergency water in-taking,
Emergency water discharge.

Main Parts Configuration
The pump could be applied to different liquid by customized wet parts, here followed our recommendation:

Parts Name	Raw Water
Pump Case	Cast Iron / Cast Steel
Shaft	C.S45# / 40Cr / 35CrMo / 42CrMo
Shaft Sleeve	C.S45# /2Cr13 / S.S304
Impeller	Cast Iron / Cast Steel / S.S304
Wearing Ring	Cast Iron / Cast Steel / S.S304
Bearing	China Make/NSK/SKF
Seals	Gland Packing Seals
